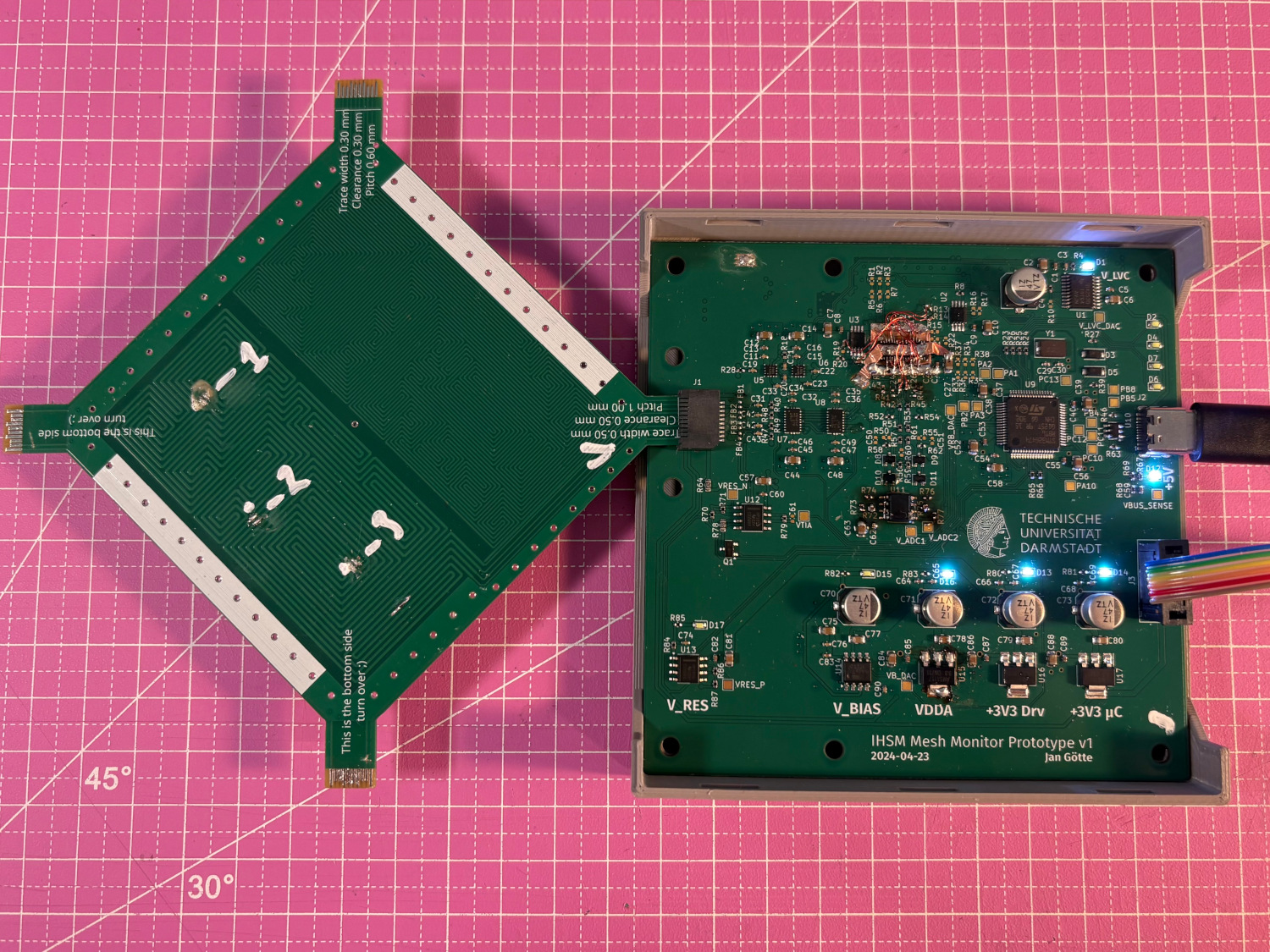

The final setup. On the right is the measurement board, and on the left is the mesh test specimen plugged
in. In a real application, you would integrate both into your target circuit.
I've got a new paper accepted at CHES, to be published in TCHES 2026/1 around beginning of December and out
on eprint now. The topic of the paper is a way of monitoring a tamper-sensing
mesh through time-domain reflectometry using very cheap components. The end result is a circuit that costs about 10 € in
parts that is able to measure TDR responses with a few hundred picoseconds of resolution.
Tamper-Sensing meshes are squiggly circuit traces that are used to tamper-proof high-security devices like hardware
security modules, ATM pin pads and countertop card payment terminals. Any area where you would like to prevent an
attacker from drilling or sawing through in a physical attack, you completely cover with one or more such circuit traces
in a meandering pattern. I've written up some work on a KiCad plugin for creating these meshes in another post.
Up to now, the state of the art in monitoring these security meshes has mostly been finding ways to precisely monitor
their ohmic resistance in the analog domain. This has the disadvantage of both being fairly complex in circuitry and of
presenting a steep trade-off between sensitivity and false-positive rate since all you get out of the whole mesh is a
single analog measurement containing maybe 12 to 16 bits of entropy. There have been a few papers on using more advanced
RF techniques, but they all either required really expensive circuitry and/or highly customized meshes that for instance
couldn't easily be fitted into arbitrary shapes.

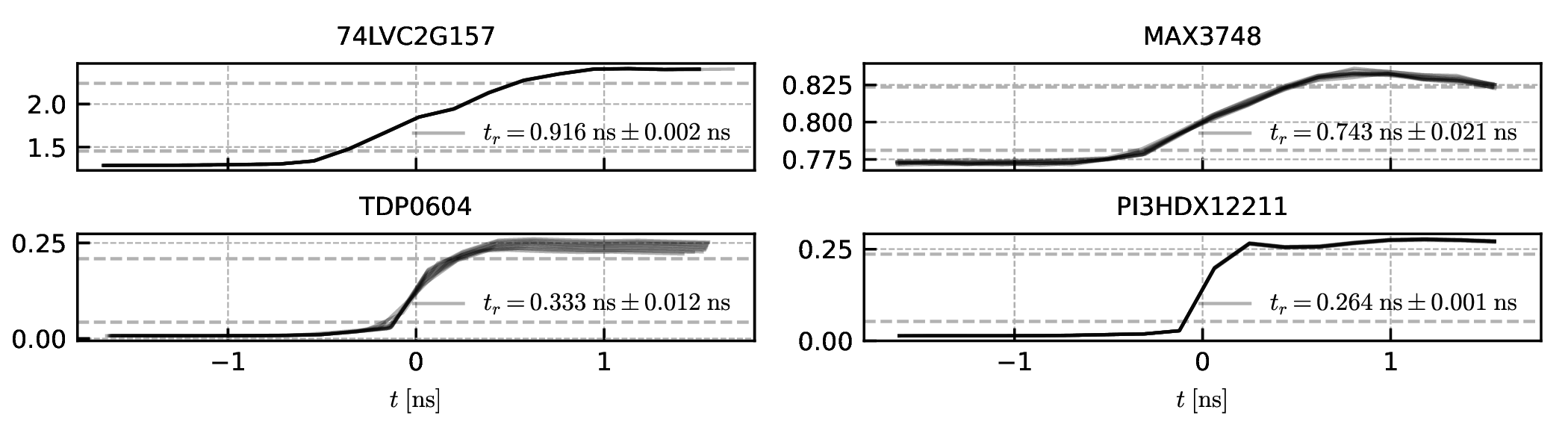

The sampling edges as measured by the board itself. As you can see, using a cheap microcontroller and some
cheap display signal redriver ICs along with commodity RF schottkies you can get pretty spicy edges on a
budget. Link to full resolution.
In this paper, I wrote up a method using the high-resolution timer of an inexpensive STM32G4-series microcontroller together with a DisplayPort/HDMI "redriver" chips meant for
amplifying high-speed display signals to create fast pulse edges. I characterized several chips, with the best
performers being TI's TDP0604 and Diodes' PI3HDX12211, coming in at 2 to 5 € depending on where and how much you buy. The
fast edges generated by these drivers are then fed to a set of four-diode sampling gates using cheap RF schottky diodes
to create a really cheap but fast time-domain reflectometer. Using this TDRD circuit, a security mesh can be monitored
much more precisely than before, since the circuit creates a sort of fingerprint of the mesh's trace along its length.

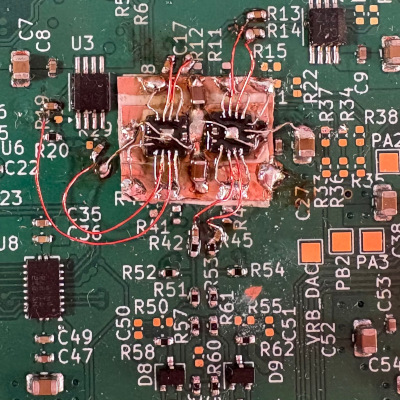

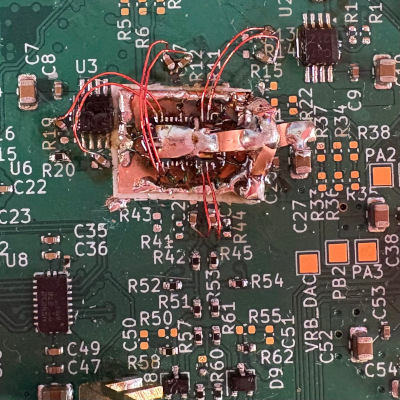

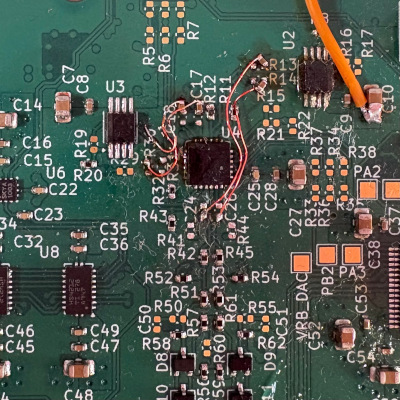

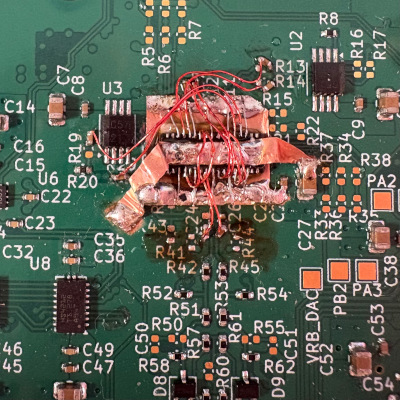

One of the fun highlights of this project to me was micro-soldering test boards using different redriver ICs. Above, you
can see the result of that soldering work. I was really happy with my cheap aliexpress microscope and with my fancy
titanium tweezers!
Have a look into the paper, where I wrote up details on the circuitry as well as a whole bunch of (>1000!) measurements
characterizing the system. As it turns out, it's really sensitive to attacks while being reasonably robust to
environmental disturbances. In fact, it's so sensitive that the circuit can distinguish multiple identical (!) copies of
the same mesh produces by JLCPCB from their manufacturing tolerances such as FR-4 fiber weave alignment.
You can find a preprint of the paper on eprint, and I'll update this post with a
link to the published version of the paper when it becomes available. The eprint is identical to the published version
as of now.
The source code of the project is available at https://git.jaseg.de/sampling-mesh-monitor.git.
